Double Layer Corrugated Trapezoidal Steel Roofing Sheet Roll Forming Machine

FOB Reference Price:Get Latest Price
  • 1 - 1 Sets
    US $16500.00
  • >=2 Sets
    US $16000.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
Haitian
Model Number:
840&900
Use:
Roof/wall
colored:
all on your demand
Controlling system:
CNC
material of roller:
45#steel,quenched HRC58-62
Step of rollers:
15steps
Material of cutting blade:
Cr12
voltage:
380V50HZ3PH
size of container:
40"GP
Main motor power:
3.0kw
Thickness of the panel:
0.2-0.8mm
After-sales Service Provided:
Overseas third-party support available
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
by 40GP container
Port
tianjin
Lead Time :
30

Double Layer Corrugated Trapezoidal Profile Steel Roofing Sheet Roll Forming Machine

Product Description

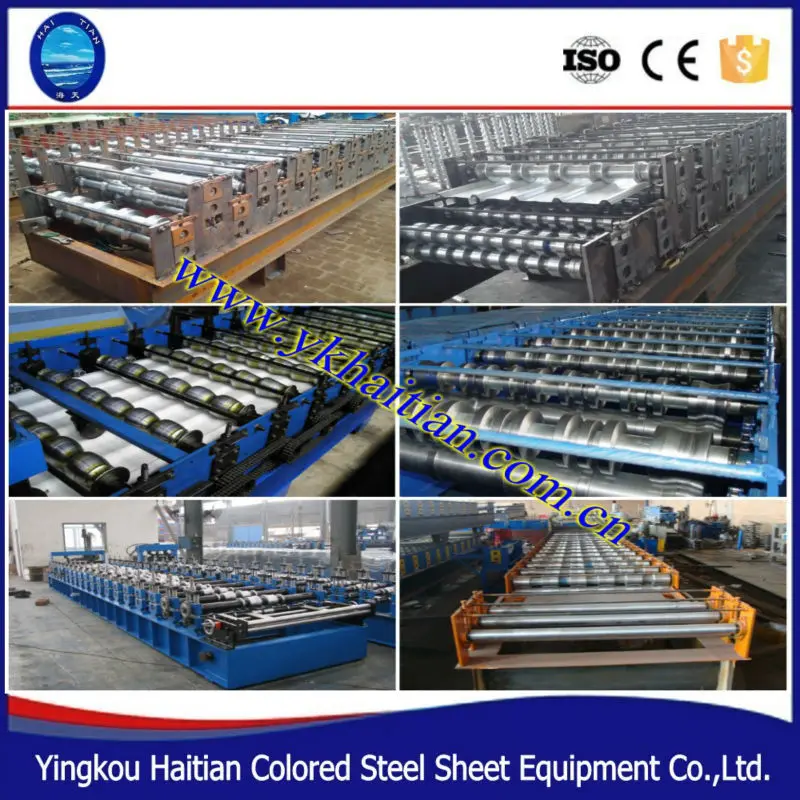

What is the Machine deails ?



 What is the Machine main parameters?



No.

Main parameters

1

Suitable to process

Colored Steel plate, galvanized board, Aluminum plate

2

Control system

PLC control

3

Productivity

Up layer: 0-3m/min,

Down layer: 8-10m/min

4

Width of the raw material

1000mm

5

Thickness of the plate

0.2-0.8mm

6

Rollers

Up layer:12 rows,

Down layer:15 rows

7

Diameter of the rollers

Φ80mm

8

Rolling galvanization thickness

0.05mm

9

Material of the cutting blade

Cr12

10

Dimension

6.0*1.3*1.2m

11

Weight

About 6.2T

12

Voltage

380V 50Hz 3phases

13

Power

4+4kw





What is the work flow?



Decoiling----> Sheet Guiding----> Coil Strip Leveling----> Roll Forming----> Cutting to length----> Output Table

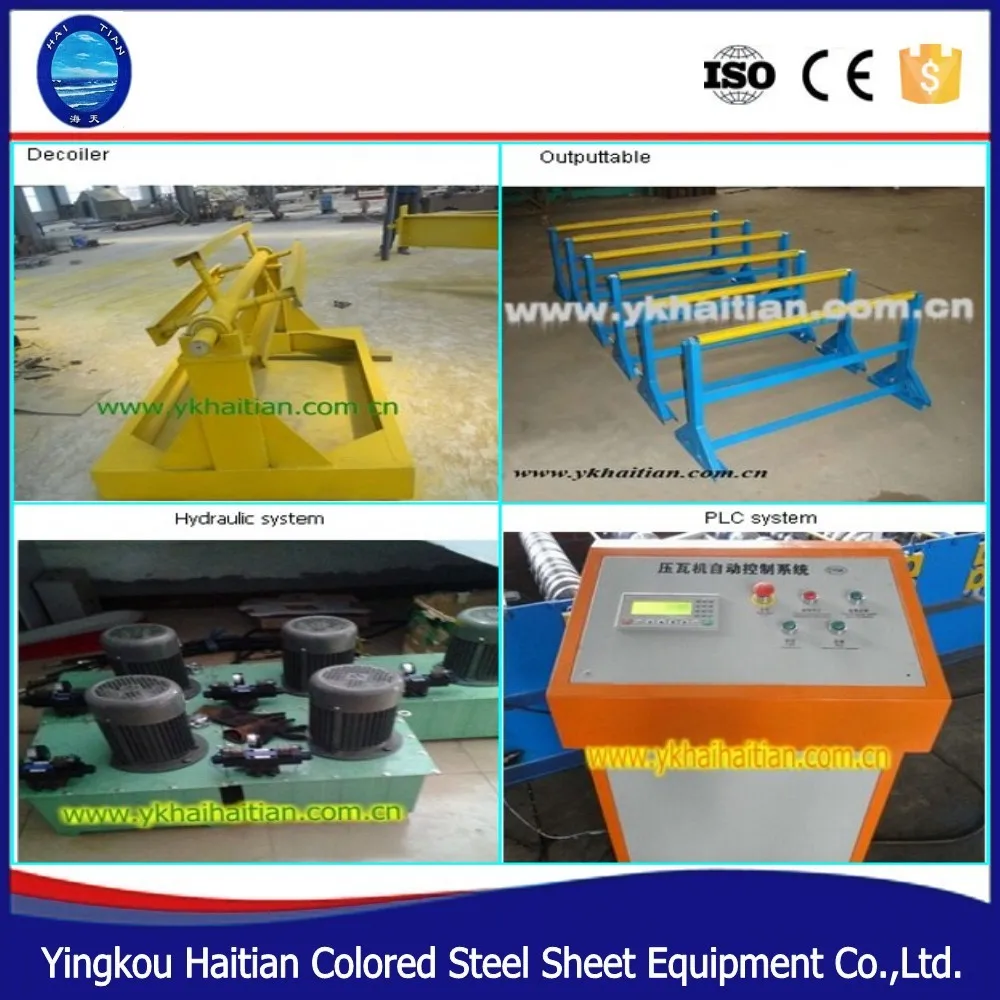

 What is the components of line ?



No.

Name

Unit

Qty

 1

Decoiler

set

1

 2

Main machine for roll forming

set

1

 3

Control system

set

1

 4

Hydraulic system

set

1

 5

Automatic cutting

set

1

 6

Output table

set

1

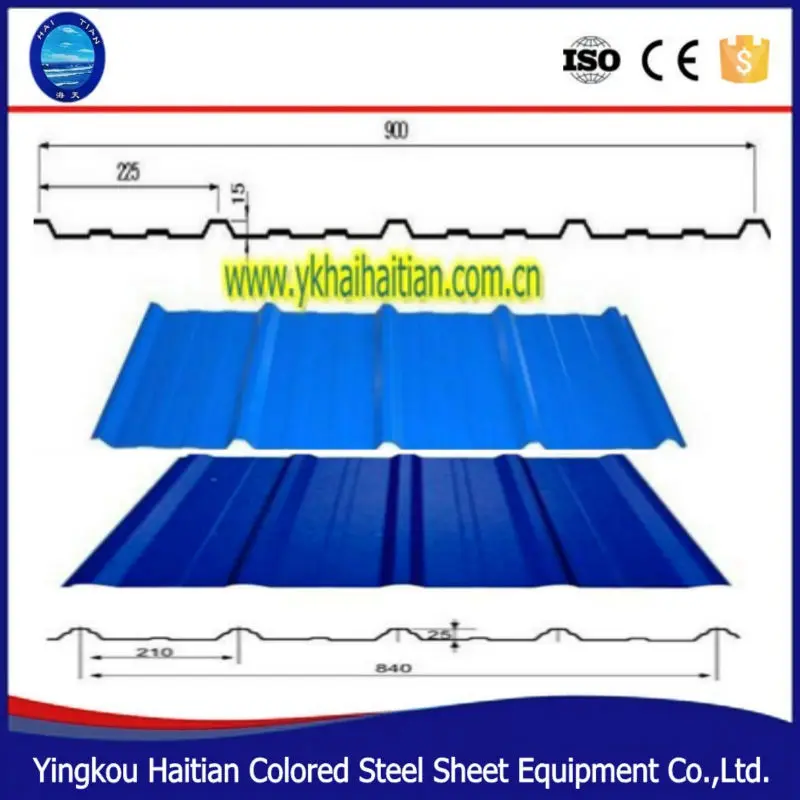

What is the drawings type?

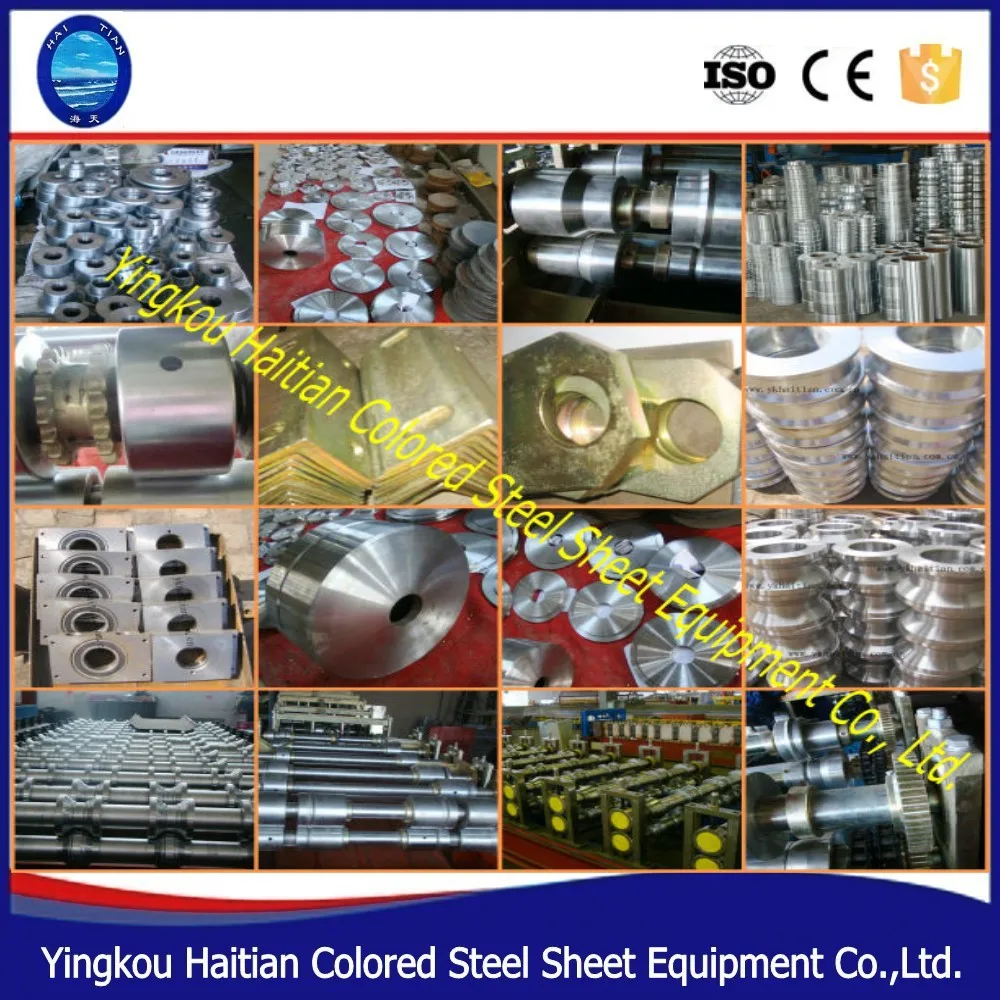

 What is the easily damaged parts ?

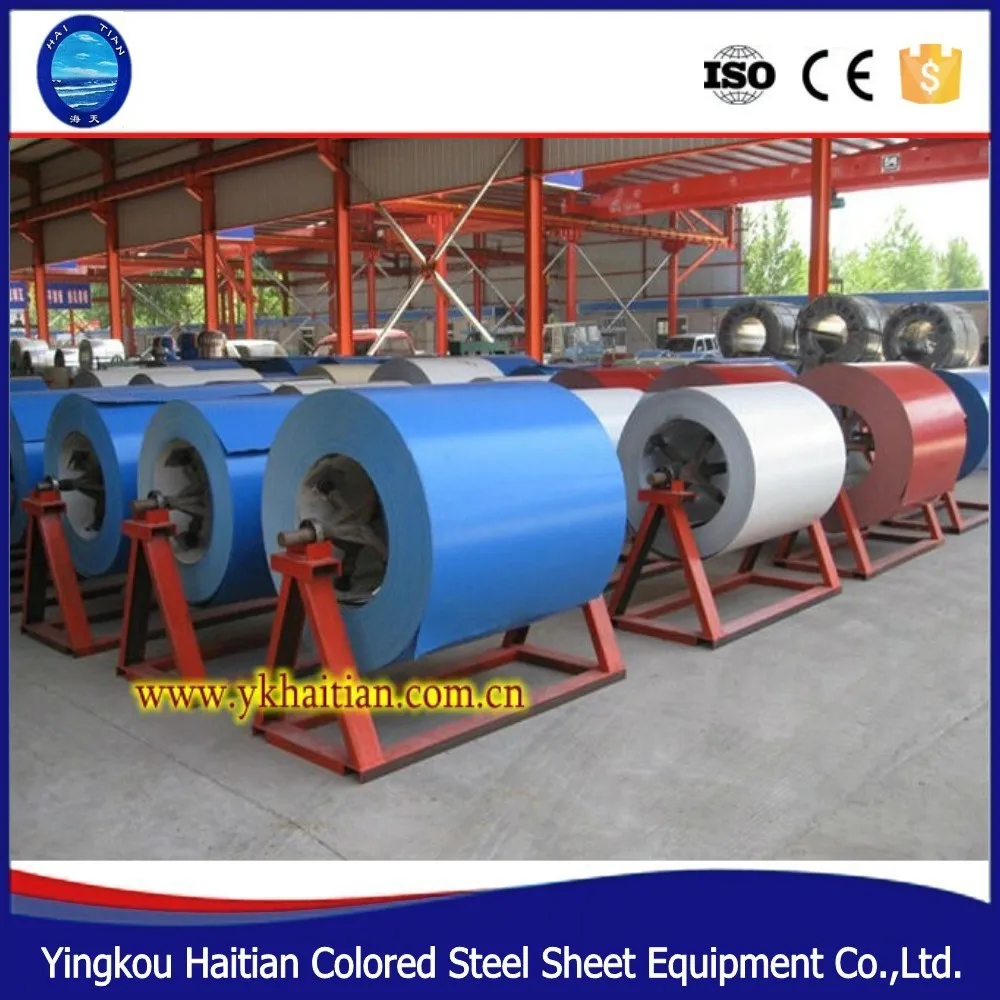

What is the raw material?



We can according to your requirements be customized





Packaging & Shipping





FAQ



Q: Can you make color order ?



A: Yes. We can according to your requirements.



Q: Are you a factory or trading company ?



A: We are a factory.



Q: Where is your factory located?



A: Our factory is located in YingKou  City, LiaoNing Province, China. All our clients, from            home or abroad, are  warmly welcome to visit us !



 Q: How do you guarantee the quality of the products?



 A: Strict product quality, unqualified resolute don't factory.This is the tenet of our                          factory

     Every one of our products have strict testing procedures, must be 100% quality                        assurance.

Our Services



Why choose us  ?

Advanced machinery, well trained workers.

More than 12 years experience in roll forming machine Ad industry.

Unique designed, good quality, competitive price.

Full range of roll forming machine solution.





How do order?



Step 1: Tell us your requirements
Step 2Quoataion will be sent based on your requirement. Solution will be recommended to you as the                               alternative
Step 3Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign                               contract.
Step 4: Advanced payment and production
Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.
Step 6: Balance payment and shipping
Step 7: Handing Shipping files to help clients get goods from transporter in time.
Step 8: Clients get goods and go into warranty time.











How is the payment ?



T/T( 30% by T/T in advance, the rest 70% to be paid by T/T after you inspect the Product  in seller's factory before delivery )

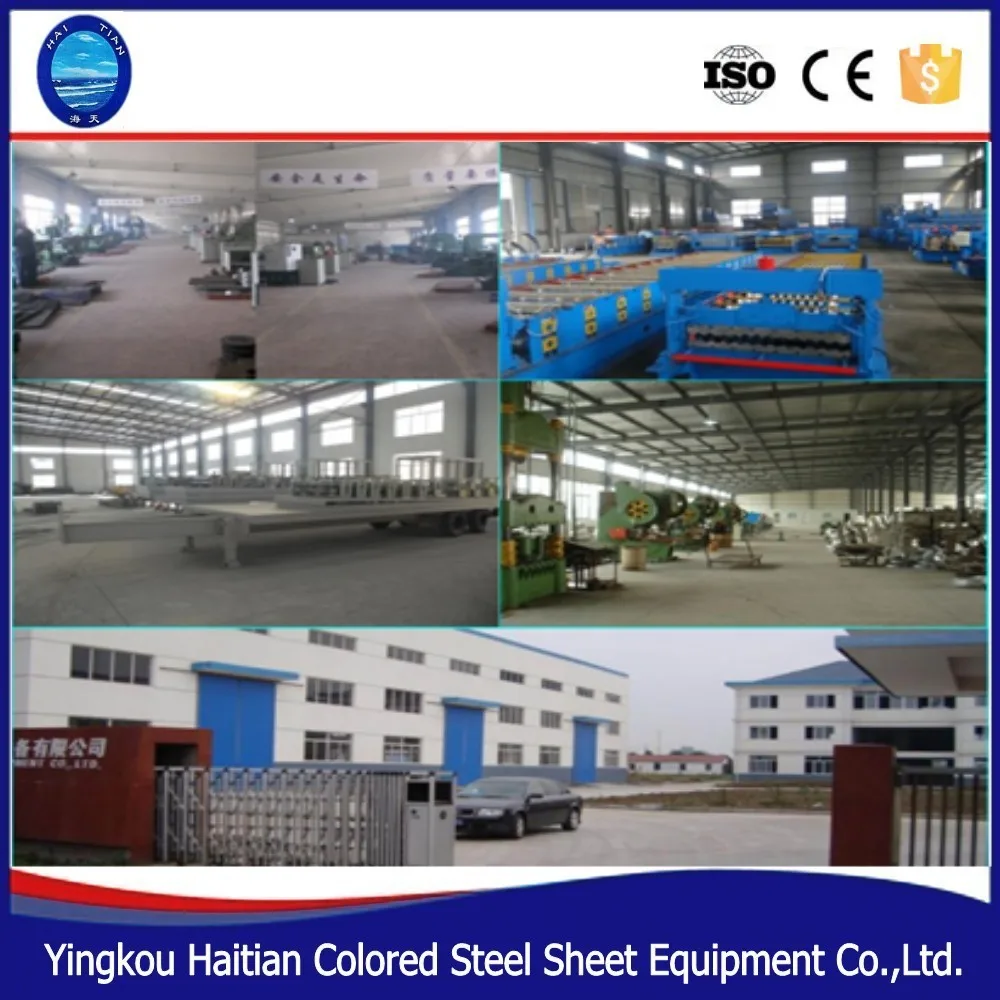

Company Information
